I.Introduction
With the development of world economy,the accident which will lead to hazardous chemical and radioactive material leakage、burn and explosion increased quickly since the particularity the construction and enterprise production.Once the disaster happens,facing the high temperature、darkness、toxic and smoke etc dangerous environment,if the fireman rushes into fire scene without appropriate equipment,it will not only unable to complete the mission,but also increase the loss of life.
II.Features

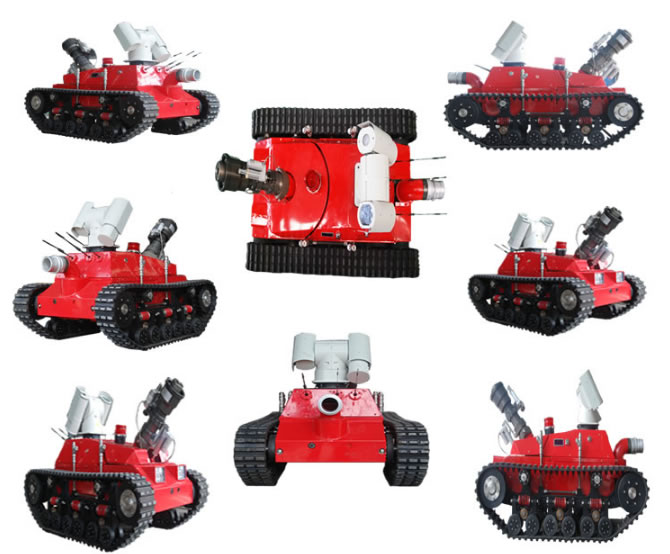

1. No loss of life.As a carrier without life,fire extinguishing robot can be fully effective when face high temperature、toxic、hypoxia、and smoke etc dangerous complicated environment where people are not able to move into.It will decrease the loss of fireman.
2. Reusability.Fire extinguishing robot is a special equipment,it can be used repeatedly while maintain normally.

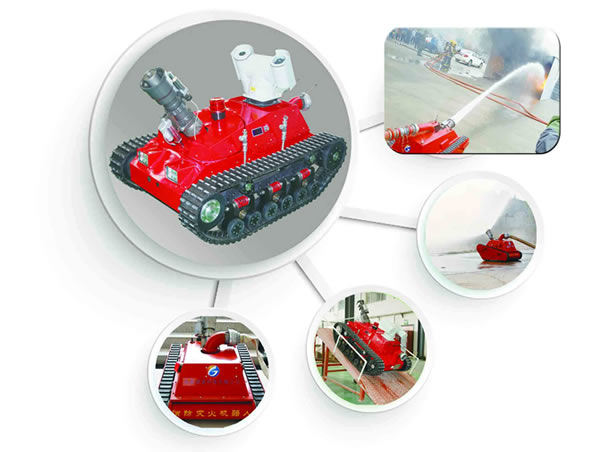

3. Functional diversification.Fire extinguishing robot can not only extinguish the fire efficiently,but also realize the function of scene image transfer、toxic and hazardous gas detection etc.
III.Parameter
|
Item/Parameter/Model |
RXR-M40D-GT02 |
RXR-M50D-GT02 |
RXR-M60D-GT02 |
|
Walking mechanism form |
crawler |
crawler |
crawler |
|
Engine rated power(w) |
1700 |
1700 |
1700 |
|
Effective remote distance（m） |
≥200 |
≥200 |
≥200 |
|
Walking speed (km/h) |
≥3 |
≥3 |
≥3 |
|
Walking temperature(°C) |
-20~+55 |
-20~+55 |
-20~+55 |
|
IP grade |
IP65 |
IP65 |
IP65 |
|
Climbing slope angle( °) |
≥30 |
≥30 |
≥30 |
|
Crossing vertical obstacle height(mm) |
≥180 |
≥180 |
≥180 |
|
Fording depth(mm) |
≤200 |
≤200 |
≤200 |
|
Minimum ground clearance(mm) |
148 |
148 |
148 |
|
Gyration |
pivot steering |
pivot steering |
pivot steering |
|
Rated flow(L/s) |
40 |
50 |
560 |
|
Rated spraying pressure (MPa) |
0.8～1.0 |
0.8～1.0 |
0.8～1.0 |
|
Spraying distance(m) |
≥65 |
≥65 |
≥70 |
|
Spraying angle (°) |
≥90 |
≥90 |
≥90 |
|
Total weight (kg) |
180 |
180 |
180 |
|
Dimension(L*W*H)(mm) |
1450*820*800 |
1450*820*800 |
1450*820*800 |
IV.Application
Fire extinguishing robot is used in the place of high temperature、strong radiation and easy to collapse, where the fire fighting vehicles and personnel are not able to close to,such as petrochemical area、oil tank area、large warehouse and building etc.Wide range of application provides the ideal security guarantee for the front firefighters.
