I.Introduction

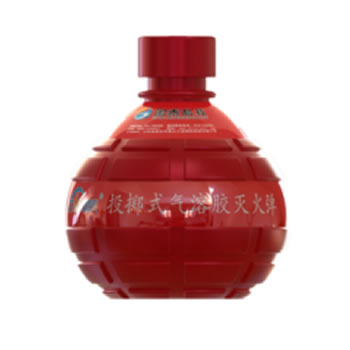

The product consists of plastic shell、electric activator、fuse、gas generator、superfine powder extinguishing agent etc.
The product is in non working state when the switch on plastic shell is off.Turn on the switch,throw the product into initial fire,the vibrating sensor starts to work,connect circuit and ignite gas generator,large numbers of gas will be produced and explode the plastic shell,superfine powder will spray out to put out the fire in the way of total flooding.
II.Parameter
|
Product name |
Throwing superfine powder fire extinguisher |
|
Model |
JTCQ0.8-GT |
|
Dimension(mm) |
132*145(diameter*height) |
|
Protection area(m³） |
3 |
|
Noise(dB) |
<120 |
|
Working temperature(℃） |
-20℃～50℃
|
III.Features
1、Spray out superfine powder fire extinguishing agent and cover the fire when product touches the ground.It can be used to put out A、B、C class fire at initial stage.
2、The aerosol has no toxic、no taste、harmless to people.
3、Using moisture proof plastic shell,decreases the damage when explode.
4、Using military superfine powder fire extinguishing agent,its extinguishing ability is 6-8 time better than normal powder.The powder is insoluble in water,no corrosion to metal
IV.Directions for use
1、Open the cap and pull out fuse,connect power switch,throw into the fire after LED lights.
2、Do not dismantle the product.
3、5 years lifespan for fuse,3 years lifespan for battery(If battery does not work,the product will still work when fuse contacts the flame).
